Unequal Tees, Reducing Tee Weld Vacuum Fittings

English
Русский

Product Detail

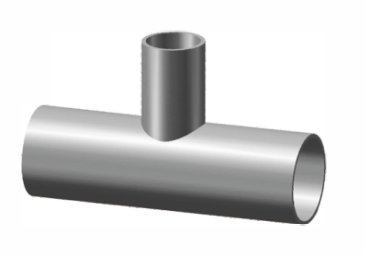

Weldable Reducing Tee Fittings are components used in high vacuum systems to connect three vacuum pipes or hoses of different sizes while maintaining high vacuum integrity. The fittings have one end that is smaller in diameter than the other two, allowing for a reduction in pipe or hose size. The fittings are designed to be welded to the connected pipes or hoses, providing a strong and permanent connection.

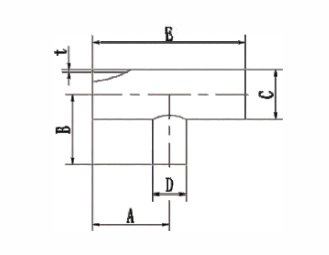

Spec	A	B	C	D	E	t
25UT16A	48.2	33.7	25.4	19.05	96.4	1.65
40UT16A	57.2	48.2	38.1	19.05	114.4	1.65
40UT25A	57.2	54	38.1	25.4	114.4	1.65
50UT16A	76.2	54	50.8	19.05	152.4	1.65
50UT25A	76.2	60	50.8	25.4	152.4	1.65
50UT40A	76.2	63.5	50.8	38.1	152.4	1.65
80UT63A	82.5	82.5	50.8	63.5	165	1.65
100UT50A	98.4	95.3	101.6	50.8	196.8	2.11
100UT63A	98.4	95.3	102.6	63.5	196.8	2.11
100UT80A	98.4	95.3	103.6	76.2	196.8	2.11
150UT80A	127	120.7	152.4	76.2	254	2.8
150UT100A	127	123.8	152.4	101.6	254	2.8
