Material: SS304 or SS316

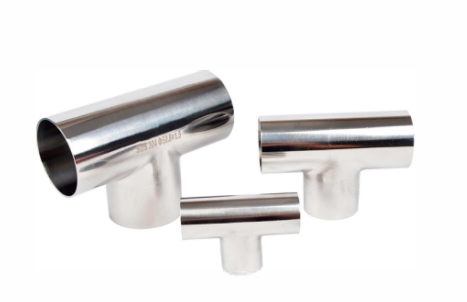

3-way Equal Weldable Tee Vacuum Fittings are components used in high vacuum systems to connect three vacuum pipes or hoses of equal diameter while maintaining high vacuum integrity. These fittings are made of a corrosion-resistant material, such as stainless steel, and are designed to withstand high vacuum pressure, high temperatures, and corrosive gases.

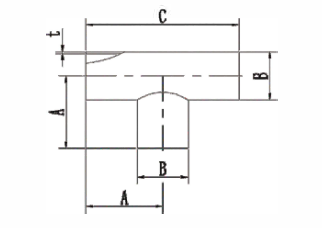

Spec | A | B | C | t |
16TA | 34.5 | 19.05 | 69 | 1.65 |
25TA | 47.6 | 25.4 | 95.2 | 1.65 |
40TA | 57.2 | 38.1 | 114.4 | 1.65 |
50TA | 76.2 | 50.8 | 152.4 | 1.65 |
63TA | 76.2 | 63.5 | 152.4 | 1.65 |
80TA | 82.5 | 76.2 | 165.1 | 1.65 |
100TA | 98.4 | 101.6 | 196.8 | 2.11 |
150TA | 127 | 152.4 | 254 | 2.8 |
