Material: SS304, SS316

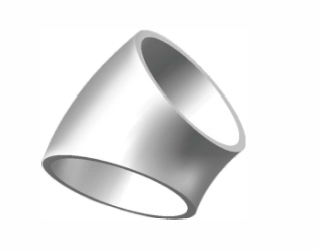

45-Degree Elbows Weldable Fittings are components used in high vacuum systems to connect vacuum pipes or hoses at a 45-degree angle while maintaining high vacuum integrity. The fittings are designed to be welded to the connected pipes or hoses, providing a strong and permanent connection.

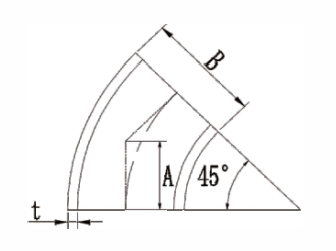

Spec | A | B | t |
16EL45A |
10.8 |
19.05 |
1.65 |
25EL45A | 15.9 | 25.4 | 1.65 |
40EL45A | 23.8 | 38.1 | 1.65 |
50EL45A | 31.8 | 50.8 | 1.65 |
63EL45A | 39.7 | 63.5 | 1.65 |
80EL45A | 47.6 | 76.2 | 1.65 |
100EL45A | 63.5 | 101.6 | 2.11 |
