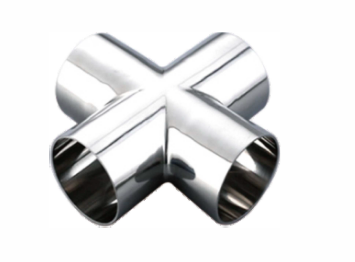

4-Way Cross
Material： SS304 or SS316
4-Way Equal Weldable Cross Fittings are commonly used in high vacuum applications where a strong and permanent connection is required, such as in vacuum pumping systems, vacuum evaporation systems, and vacuum deposition systems.

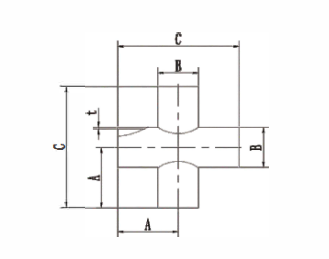

| Spec | A | B | C | t |
| 16XA | 34.5 | 19.05 | 69 | 1.65 |
| 25XA | 47.6 | 25.4 | 95.2 | 1.65 |
| 40XA | 57.2 | 38.1 | 114.4 | 1.65 |
| 50XA | 76.2 | 50.8 | 152.4 | 1.65 |
| 63XA | 76.2 | 63.5 | 152.4 | 1.65 |
| 80XA | 82.5 | 76.2 | 165.1 | 1.65 |
| 100XA | 98.4 | 101.6 | 196.8 | 2.11 |
| 150XA | 127 | 152.4 | 254 | 2.8 |
