Material: SS304, SS316

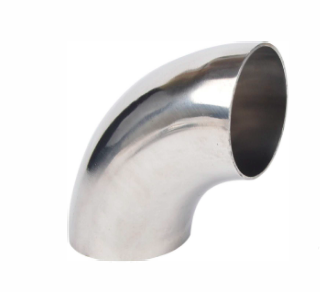

90 Degree Elbows with Tangents are components used in high vacuum systems to connect vacuum pipes or hoses at a 90-degree angle while maintaining high vacuum integrity. The elbows have two tangent sections on either side, which provide a smooth and continuous transition between the two connected pipes or hoses.

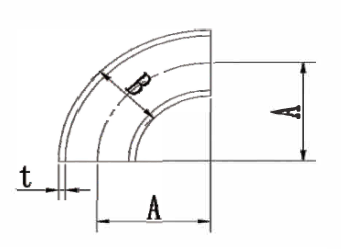

Specification | A | B | R | t |
16ELT90A | 34.5 | 19.05 | 28.6 | 1.65 |
25ELT90A | 52.4 | 25.4 | 38.1 | 1.65 |
40ELT90A | 74.6 | 38.1 | 57.2 | 1.65 |
50ELT90A | 103.2 | 50.8 | 76.2 | 1.65 |
63ELT90A | 131.8 | 63.5 | 95.2 | 1.65 |
80ELT90A | 160.3 | 76.2 | 114.3 | 1.65 |
100ELT90A | 211.1 | 101.6 | 152.4 | 2.11 |
