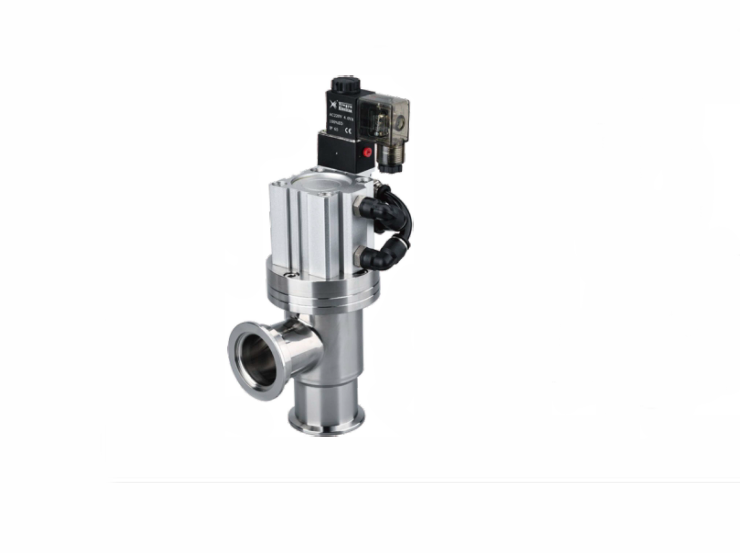

KF Pneumatic Angle Valve
Pressure Range (Pa)： 1E5~1.3E-6
Leak Rate (Pa˙L/s)： ≤1.3E-7
Compressed Air Pressure(MPa): 0.4~0.6
Orientation： Any
Flange： KF
Power Voltage: 220V(Standard)
| Specification | Standard | O.D. | A | B | C | D |
| GDQ-J16-KF | ANSI | 19.05 | 50.8 | 30 | 159.6 | 63 |
| GDQ-J25-KF | 25.4 | 47.75 | 40 | 143.95 | 63 | |
| GDQ-J40-KF | 38.1 | 57.15 | 55 | 175.55 | 78 | |
| GDQ-J50-KF | 50.8 | 82.55 | 75 | 214.3 | 88 | |
| GDQ-J63-KF | 63.5 | 76.2 | 87 | 235.2 | 101.6 | |
| GDQ-J80-KF | 76.2 | 82.55 | 114 | 274.25 | 114 | |
| GDQ-J16-KF |
EN |
19.05 | 40 | 30 | 145 | 63 |
| GDQ-J25-KF | 25.4 | 50 | 40 | 146.2 | 63 | |
| GDQ-J40-KF | 38.1 | 65 | 55 | 183.4 | 78 | |
| GDQ-J50-KF | 50.8 | 70 | 75 | 198.3 | 88 | |
| GDQ-J63-KF | 63.5 | 88 | 87 | 247 | 101.6 | |
| GDQ-J80-KF | 76.2 | 98 | 114 | 289.7 | 114 |
