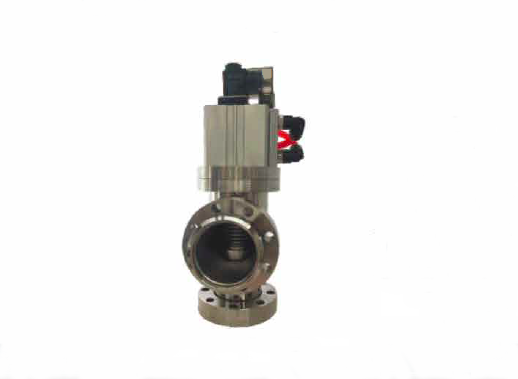

CF Pneumatic Angle Vacuum Valve

Pressure Range (Pa)： 1E5~1.3E-6
Leak Rate (Pa˙L/s)： ≤1.3E-7
Compressed Air Pressure(MPa): 0.4~0.6
Orientation： Any
Flange： CF
Power Voltage: 220V(Standard)

Product Detail

Specification	O.D.	A	B	C	D
GDQ-J16-CF	19.05	54.1	34	160.1	63
GDQ-J25-CF	25.4	52.8	54	145.2	63
GDQ-J35-CF	38.1	62.7	70	177.3	78
GDQ-J50-CF	50.8	90.6	86	218.5	88
GDQ-J63-CF	63.5	85.7	114	240.9	101.6
GDQ-J80-CF	76.2	92.6	130	277.8	114
