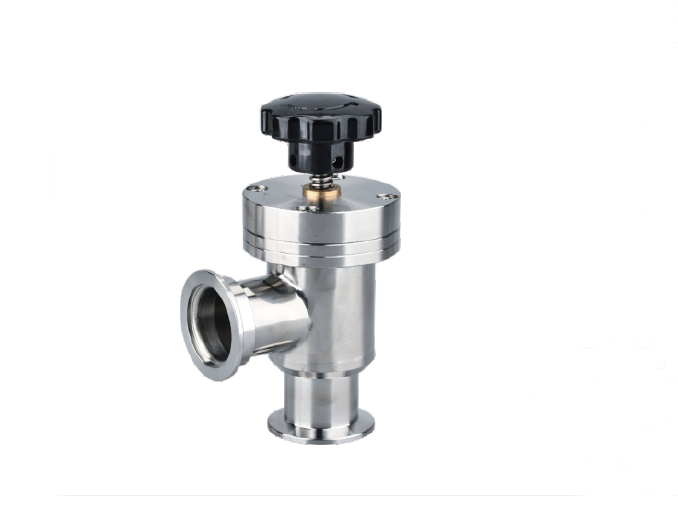

KF Manual Angle Vacuum Valve
Pressure Range (Pa)： 1E5~1.3E-6
Leak Rate (Pa˙L/s)： ≤1.3E-7
Orientation： Any
Flange： KF

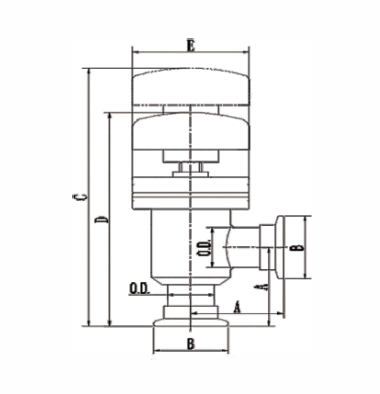

| Specification | Standard | O.D | A | B | C | D | E |
| GD-J16-KF | ANSI | 19.05 | 50.8 | 30 | 153.8 | 137.8 | 63 |
| GD-J25-KF | 25.4 | 47.8 | 40 | 150.8 | 134.8 | 63 | |
| GD-J40-KF | 38.1 | 57.2 | 55 | 177.7 | 158.7 | 78 | |
| GD-J50-KF | 50.8 | 82.6 | 75 | 223.8 | 203.8 | 88 | |
| GD-J63-KF | 63.5 | 76.2 | 87 | 246.2 | 221.2 | 101.6 | |
| GD-J80-KF | 76.2 | 82.6 | 114 | 279.9 | 249.9 | 114 | |
| GD-J16-KF | EN | 19.05 | 40 | 30 | 143 | 127 | 63 |
| GD-J25-KF | 25.4 | 50 | 40 | 153 | 137 | 63 | |
| GD-J40-KF | 38.1 | 65 | 55 | 185.5 | 166.5 | 78 | |
| GD-J50-KF | 50.8 | 70 | 75 | 211.2 | 191.2 | 88 | |
| GD-J63-KF | 63.5 | 88 | 87 | 258 | 233 | 101.6 | |
| GD-J80-KF | 76.2 | 98 | 114 | 295.4 | 265.4 | 114 |
