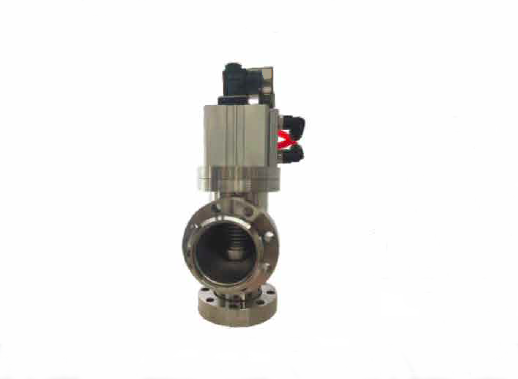

ISO Pneumatic Angle Valve
Pressure Range (Pa)： 1E5~1.3E-6
Leak Rate (Pa˙L/s)： ≤1.3E-7
Compressed Air Pressure(MPa): 0.4~0.6
Orientation： Any
Flange： ISO
Power Voltage: 220V(Standard)
| Specification | OD | A | B | C | D | ||
| GDQ-J63-ISO | 63.5 | 88 | 95 | 247 | 101.6 | ||
| GDQ-J80-ISO | 76.2 | 98 | 110 | 290 | 114 | ||
| GDQ-J100-ISO | 101.6 | 108 | 130 | 334 | 145.8 | ||
| GDQ-J160-ISO | 152.4 | 138 | 180 | 455 | 204 | ||
| GDQ-J200-ISO | 204 | 200 | 240 | 609 | 254 | ||
| GDQ-J250-ISO | 254 | 208 | 290 | 737 | 306 | ||
| Flange | F | G | H*No | P.C.D | I | J | T |
| ISO63 | 130 | 12 | 9*4 | 110 | 75 | 87.6 | 3.7 |
| ISO80 | 145 | 12 | 9*8 | 125 | 88.5 | 101.1 | 3.7 |
| ISO100 | 165 | 12 | 9*8 | 145 | 107.5 | 120.1 | 3.7 |
| ISO160 | 225 | 16 | 11*8 | 200 | 160 | 172.8 | 3.7 |
| ISO200 | 285 | 16 | 11*8 | 260 | 224 | 236.6 | 3.7 |
| ISO250 | 335 | 16 | 11*8 | 310 | 266 | 278.6 | 3.7 |
