Material: SS304, Aluminum
Size: NW10, NW16, NW25, NW40, NW50

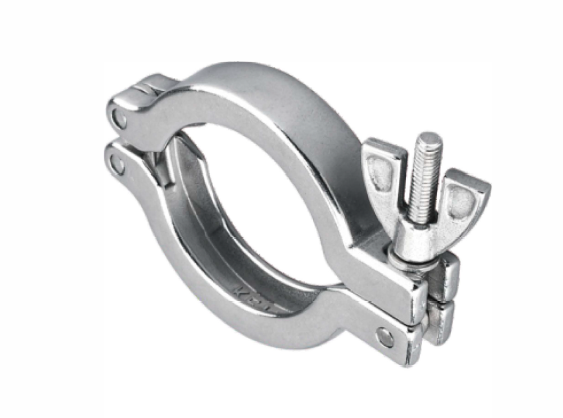

KF clamp is a kind of convenient fastener for quick connection of vacuum pipeline, and the material is generally divided into two kinds; aluminum or stainless steel. KF vacuum clamps can be used in combination with KF adapters, centering rings, vacuum blind plates, and can also be used in conjunction with vacuum valves, tees, elbows, crosses, vacuum bellows, vacuum adapters, and vacuum chambers.

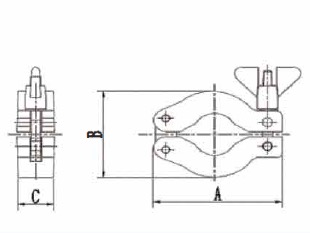

Specification | Material | A | B | C |
KF10C |
Aluminum | 63 |
42.5 |
16 |
KF16C | 63 | 42.5 | 16 | |
KF25C | 72 | 54 | 16 | |
KF40C | 90 | 70 | 16 | |
KF50C | 114 | 90 | 20 | |
KF10C |
304 |
63 |
42.5 |
16 |
KF16C | 63 | 42.5 | 16 | |
KF25C | 72 | 54 | 16 | |
KF40C | 90 | 70 | 16 | |
KF50C | 114 | 90 | 20 |
