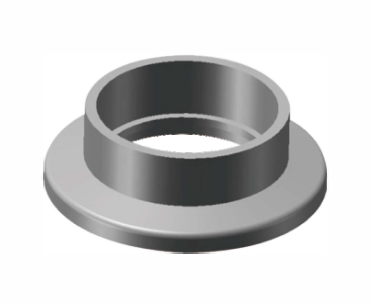

Long KF Socket Weld Flange
Material： SS304, SS316
Size： NW10, NW16, NW25, NW40, NW50

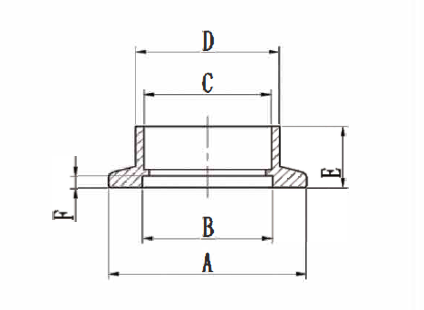

| Specification | A | B | C | D | E | F |
| KF10WS | 30 | 12.2 | 12.9 | 13 | 12.7 | 2.5 |
| KF16WS | 30 | 17.2 | 19.3 | 19.3 | 12.7 | 2.5 |
| KF25WS | 40 | 26.2 | 25.7 | 28 | 12.7 | 2.5 |
| KF40WS | 55 | 41.2 | 38.4 | 45 | 12.7 | 2.5 |
| KF50WS | 75 | 52.2 | 51 | 57 | 12.7 | 2.5 |
| KF63WS | 87 | 70 | 63.7 | 67.5 | 12.7 | 2.5 |
| KF80WS | 114 | 83 | 76.4 | 89 | 20 | 4.5 |
| KF100WS | 134 | 102 | 101.8 | 108 | 20 | 4.5 |
| KF125WS | 161 | 127 | 127.2 | 134 | 20 | 4.5 |
| KF160WS | 190 | 153 | 152.9 | 165 | 20 | 4.5 |
| KF200WS | 252 | 213 | 204.3 | 219 | 20 | 4.5 |
