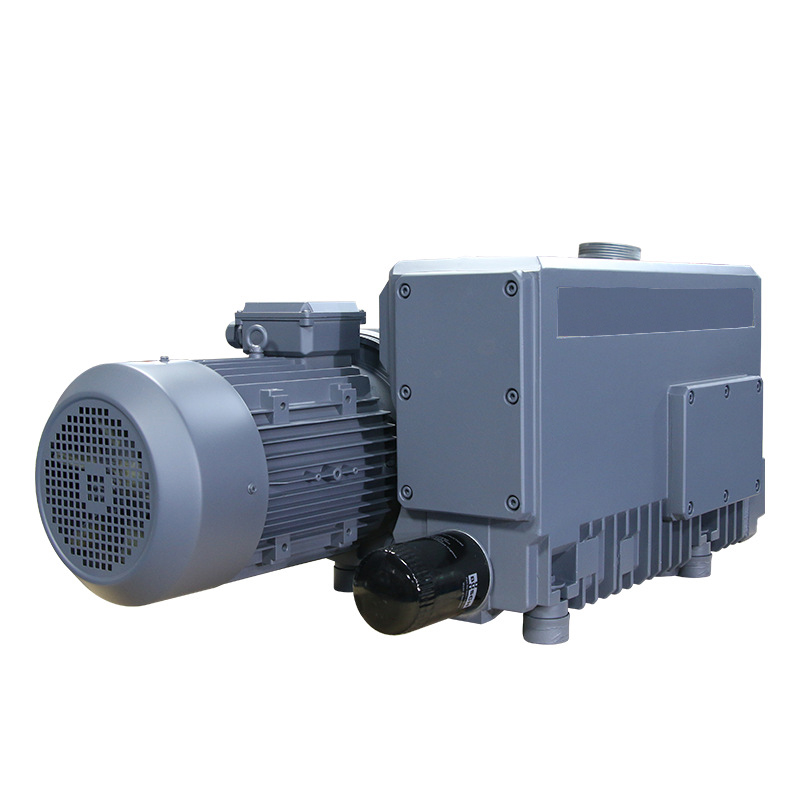

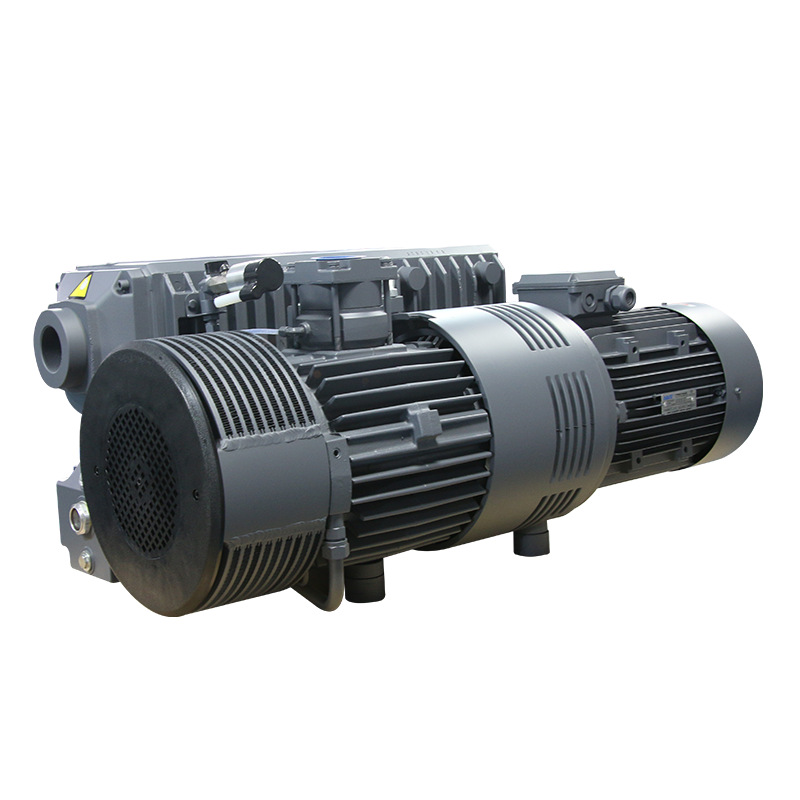

Direct Drive Single Stage Oil-Sealed Rotary Vane Vacuum Pump

A Direct Drive Single Stage Oil-Sealed Rotary Vane Vacuum Pump is a mechanical pump used to create a vacuum by removing air and other gases from a sealed volume. Here’s a detailed description of its features and working principles:

Key Features:

Direct Drive Mechanism:

The pump is driven by an electric motor directly connected to the rotor, minimizing energy loss and improving efficiency.

Direct drive systems tend to offer a more compact design compared to belt-driven pumps and often have lower maintenance needs.

Single Stage Operation:

This pump features a single compression stage, where air or gas is compressed in one cycle, making it suitable for applications requiring moderate vacuum levels.

It provides a balance between efficiency and performance, achieving vacuum pressures in the range of approximately 0.1 mbar to 0.5 mbar.

Oil-Sealed Design:

The pump uses a specially formulated oil to lubricate, seal, and cool the internal components.

Oil plays a crucial role in maintaining the vacuum by sealing the space between the vanes and the housing, reducing backflow and wear.

The oil also absorbs some of the heat generated during operation, ensuring a longer service life for the pump.

Rotary Vane Mechanism:

Inside the pump, a rotor with several vanes is mounted eccentrically in a cylindrical chamber.

As the rotor spins, the vanes slide in and out due to centrifugal force, trapping air in discrete compartments. As the trapped air moves through the pump, it is compressed and expelled, creating a vacuum.

Compact and Quiet Operation:

Designed for quiet, vibration-free performance, making it ideal for labs, medical equipment, and industrial applications where noise and vibration control are essential.

Maintenance:

Regular oil changes are required to maintain the vacuum pump’s efficiency and prevent contamination of the vacuum chamber.

It may also require periodic checks for wear and tear, particularly of the vanes and seals, which are essential to maintain performance.

Advantages:

Durability: The oil sealing and lubrication reduce friction, extending the pump's operational life.

Cost-Effective: It’s a relatively simple yet efficient design, making it cost-effective for many industrial and scientific applications.

Versatile: Suitable for a variety of applications, from rough vacuum needs to more precise requirements.

Disadvantages:

Requires Oil Changes: Maintenance is essential to keep the pump performing optimally.

Limited to Medium Vacuum Applications: Not suitable for ultra-high vacuum or clean applications where oil contamination might be an issue.
