Two Stage Rotary Vane Vacuum Pump
3, 5, 10, 16 m3/h two-stage rotary vane vacuum pumps have a pumping speed ranging from 3 m3/h to 16 m3/h, depending on the model. The pump is designed to be compact and efficient, with low noise and vibration levels.

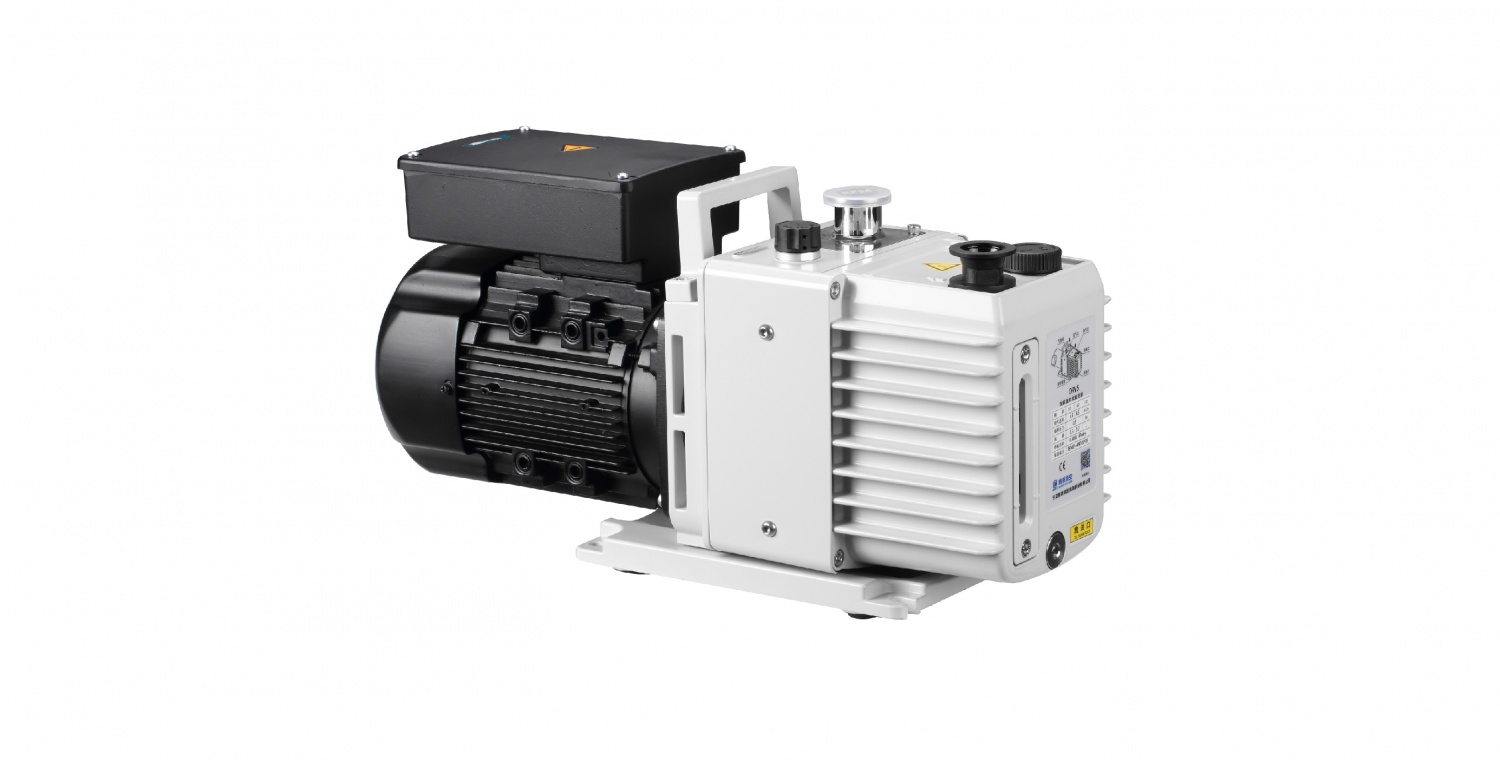

DRV3, DRV5, DRV10, DRV16 Two-Stage Rotary Vane Vacuum Pump
Powerful. Compact. Reliable.
The DRV Series Two-Stage Rotary Vane Vacuum Pump is a versatile and high-efficiency vacuum solution designed for a wide range of industrial and laboratory applications. With pumping speeds of 3 m³/h, 5 m³/h, 10 m³/h, and 16 m³/h, the DRV series offers flexible performance to meet different process requirements while delivering stable and deep vacuum levels.
High Vacuum Performance with Two-Stage Technology
The DRV pump features a two-stage rotary vane design, enabling it to achieve deeper ultimate vacuum and higher pumping efficiency compared to single-stage pumps. This makes it an ideal choice for applications requiring precise and stable vacuum control.
Multiple Pumping Speed Options
Available in four pumping speed variants—3, 5, 10, and 16 m³/h—the DRV series easily adapts to a wide range of operating conditions, from small laboratory setups to medium-scale industrial processes.
Compact Design, Easy Integration
With its compact and space-saving structure, the DRV vacuum pump can be easily integrated into existing systems or installed in environments where space is limited, such as laboratories and equipment cabinets.
Quiet and Smooth Operation
Designed with low-noise operation in mind, the DRV series ensures a quiet and comfortable working environment, making it suitable for noise-sensitive applications.
Efficient and Reliable Performance
The optimized rotary vane mechanism ensures consistent vacuum performance, high efficiency, and reliable operation, even during continuous use. This helps improve productivity and process stability.
User-Friendly Maintenance
The DRV vacuum pump is engineered for easy maintenance, with accessible components that simplify routine servicing and reduce downtime.
Durable Construction
Manufactured using high-quality materials and precision engineering, the DRV series is built for long service life and dependable operation under demanding conditions.

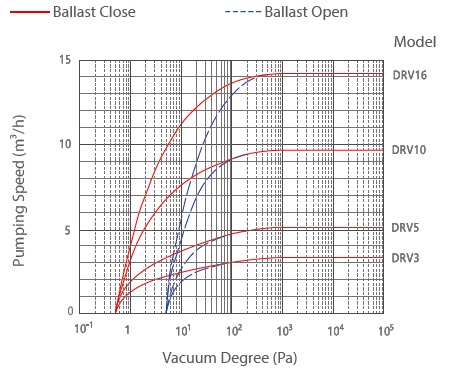

| Model | DRV3 | DRV5 | DRV10 | DRV16 | ||
| Pumping speed | 50Hz | m3/h | 3.6 | 5.4 | 9.9 | 14.4 |
| 60Hz | 4.3 | 6.5 | 12 | 17.4 | ||
| Ultimate Vacuum | GB Closed | Pa | 0.5 | 0.5 | 0.5 | 0.5 |
| GB Open | 5 | 5 | 5 | 5 | ||
| Motor Power | 380V(3ph) | kW | 0.4 | 0.4 | 0.4 | 0.55 |
| 220v(1ph) | kW | 0.4 | 0.4 | 0.4 | 0.55 | |
| Inlet | KF16/KF25 | KF16/KF25 | KF16/KF25 | KF16/KF25 | ||
| Outlet | KF25 | KF25 | KF25 | KF25 | ||
| Vacuum Pump Oil | BSO46 | |||||
| Oil Capacity | L | 0.7 | 0.7 | 1.1 | 1.2 | |
| Weight | kgs | 22.5 | 22.5 | 25 | 27 | |
The pump is suitable for a wide range of applications, including vacuum drying, distillation, and degassing. Its compact size and high pumping speed make it ideal for use in laboratory and industrial settings where space is limited and a high vacuum level is required.
