Fluid Coupling Roots Vacuum Pump

2600, 4200 m3/h fluid coupling roots vacuum pump is a type of mechanical pump that is designed to increase the speed and efficiency of vacuum systems. It operates using a hydraulic coupling to power a set of rotors or impellers, which move air or gas molecules from the inlet side to the outlet side.

The BSJ-LC series fluid coupling roots vacuum pump is a specialized vacuum pumping system designed for demanding industrial applications. It utilizes a fluid coupling mechanism for efficient and reliable operation. Here's a description of the BSJ-LC series fluid coupling roots vacuum pump with different pumping speeds:


BSJ-LC Series Fluid Coupling Roots Vacuum Pump

The BSJ-LC series fluid coupling roots vacuum pump is a high-capacity vacuum pumping system engineered for industrial use. It employs a fluid coupling mechanism to deliver efficient and consistent vacuum performance, making it well-suited for a wide range of applications that require large pumping capacities.


Key Features:

Pumping Speed Options

The BSJ-LC series is available in different models with pumping speeds of 2600m3/h and 4200m3/h. These models cater to applications with substantial vacuum requirements.


Fluid Coupling Design

The fluid coupling mechanism provides smooth and efficient power transmission between the motor and the vacuum pump. It enhances energy efficiency and reduces wear and tear on components.


Roots Booster Vacuum Pump Integration:

Experience a remarkable augmentation in vacuum performance with the incorporation of Roots technology. This pump serves dual roles as both a primary vacuum pump and a booster pump, providing exceptional pumping speeds and vacuum levels essential for critical industrial processes.


Vacuum Booster Pump Efficiency:

As a dedicated vacuum booster pump, it significantly amplifies the pumping capacity, allowing for swift evacuation and increased productivity. The Roots booster technology ensures optimal performance even in challenging conditions.


High Capacity

With its significant pumping speeds, this vacuum pump is capable of handling large volumes of gas and achieving deep vacuum levels.


Robust Construction

The pump is constructed with high-quality materials and precision engineering to ensure durability and reliability even under heavy-duty industrial conditions.


Versatile Applications: It can be employed in various industrial sectors, including chemical processing, metallurgy, and manufacturing, where high-capacity vacuum pumps are essential.


Efficient Performance: The roots blower mechanism guarantees efficient and reliable vacuum performance, making it ideal for demanding applications.


Ease of Maintenance: Despite its high capacity, the BSJ-LC series is designed for ease of maintenance, with accessible components and user-friendly controls.


If you require a vacuum pump for industrial processes that demand substantial pumping capacities, the BSJ-LC series fluid coupling roots vacuum pump is a dependable choice. Its fluid coupling design ensures smooth operation and efficient power transmission, making it suitable for critical vacuum system needs in various industries.


ModelBSJ600LCBSJ1200LC
Pumping speed50Hzm3/h25904140
60Hz31104985

Max Inlet Pressure

( continuous operation)

50HzPa1.0×1051.0×105
60HzPa1.0×1051.0×105
Max Allowable Differential Pressure
50HzPa8×103
6×103
60HzPa6.7×1035×103
Ultimate Vacuum
Pa0.40.4
Motor Power (2P)kW7.511
InletISO160ISO250
Outlet
ISO100ISO100
Vacuum Pump OilBSO46
BSO46
Oil CapacityGear CoverL3.5
3.5
Hydraulic CouplingL6.56.5
Shaft Seal ReservoirL1.51.5
Cooling Water
FlowL/min66
PressureMPa0.2~0.60.2~0.6
Temperature5~355~35
Weightkgs350420

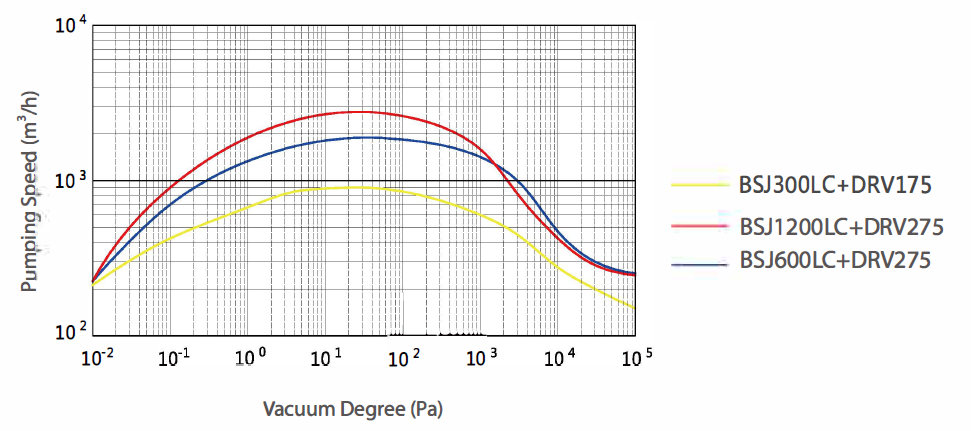

BSJ-LC roots vacuum pump speed curve

Industrial Vacuum Systems, Chemical and Pharmaceutical Industries, Power Plants, Semiconductor Manufacturing, Food Processing and Packaging, Environmental Applications, Vacuum Conveying Systems, Vacuum Degassing, Central Vacuum Systems, Freeze Drying, Vacuum Furnaces, Leak Detection, Research and Development, Solar Panel Manufacturing, Evaporation and Distillation, Vacuum Lifting and Handling.
