Material: SS304, SS316

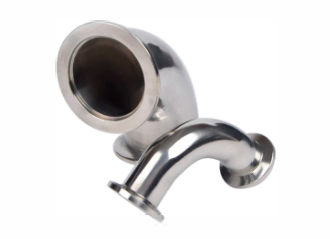

KF 90-degree elbow vacuum fittings are components used in vacuum systems to change the direction of the vacuum line by 90 degrees. These fittings are part of the KF series of vacuum components, which are a type of standardized flange system commonly used in low to medium-vacuum applications.
Specification | Standard | A | B | C | R |
KF16EL90A | ANSI | 38.3 | 19.05 | 30 | 28.6 |
KF25EL90A | 51.4 | 25.4 | 40 | 38.1 | |
KF40EL90A | 78.4 | 38.1 | 55 | 57.2 | |
KF50EL90A | 107 | 50.8 | 75 | 76.2 | |
KF16EL90E |
EN |
40 | 19.05 | 30 | 28.6 |
KF25EL90E | 50 | 25.4 | 40 | 38.1 | |
KF40EL90E | 65 | 38.1 | 55 | 57.2 | |
KF50EL90E | 70 | 50.8 | 75 | 76.2 |
