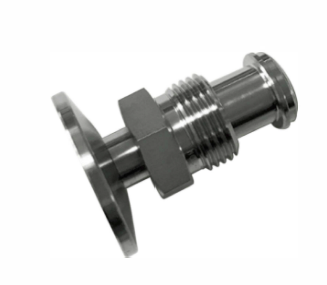

KF-VCR Male Adapter

Material: SS304 or SS316

Product Detail

A KF to VCR (Male) Adapter is a vacuum fitting that allows components with KF flanges to be connected to components with VCR (Male) fittings. This adapter is typically made of stainless steel, which is corrosion-resistant and suitable for use in high-vacuum applications. The adapter has a KF flange on one end and a VCR (Male) fitting on the other end.

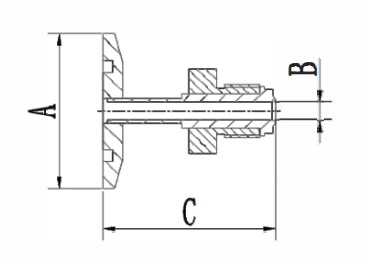

Specification	A	B	C	VCR
KF16MVCR6	30	4.4	44	1/4''
KF16MVCR13	30	10.4	44	1/2''
KF25MVCR6	40	4.4	44	1/4''
KF25MVCR13	40	10.4	44	1/2''
KF40MVCR6	55	4.4	44	1/4''
KF40MVCR13	55	10.4	44	1/2''
KF50MVCR6	75	4.4	44	1/4''
KF50MVCR13	75	10.4	44	1/2''
