Material: SS304 or SS316
An ISO to KF Reducing Conical Adapter is a vacuum fitting made of stainless steel that allows components with ISO flanges to be connected to components with KF flanges. The stainless steel material provides resistance to corrosion and ensures durability in high-vacuum applications, which can involve high temperatures, high vacuum pressure, and corrosive gases. The adapter typically has an ISO flange on one end and a KF flange on the other, with a reducing conical shape that allows components with different flange sizes to be connected together.

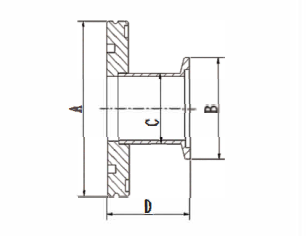

Specification | A | B | C | D |
ISO63KA16 | 95 | 30 | 19.05 | 46.5 |
ISO63KA25 | 95 | 40 | 25.4 | 46.5 |
ISO63KA40 | 95 | 55 | 38.1 | 46.5 |
ISO63KA50 | 95 | 75 | 50.8 | 46.5 |
ISO80KA16 | 110 | 30 | 19.05 | 46.5 |
ISO80KA25 | 110 | 40 | 25.4 | 46.5 |
ISO80KA40 | 110 | 55 | 38.1 | 46.5 |
ISO80KA50 | 110 | 75 | 50.8 | 46.5 |
ISO100KA16 | 130 | 30 | 19.05 | 46.5 |
ISO100KA25 | 130 | 40 | 25.4 | 46.5 |
ISO100KA40 | 130 | 55 | 38.1 | 46.5 |
ISO100KA50 | 130 | 75 | 50.8 | 46.5 |
ISO160KA16 | 180 | 30 | 19.05 | 46.5 |
ISO160KA25 | 180 | 40 | 25.4 | 46.5 |
ISO160KA40 | 180 | 55 | 38.1 | 46.5 |
ISO160KA50 | 180 | 75 | 50.8 | 46.5 |
