Material: SS304, SS316
KF Reducing Conical Adapters Vacuum Fittings are commonly used in high-vacuum applications where components with different KF flange sizes need to be connected, such as in vacuum pumping systems, vacuum evaporation systems, and vacuum deposition systems. They provide a flexible and reliable connection between vacuum components, allowing for greater flexibility in the design and layout of vacuum systems.

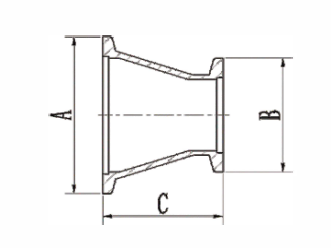

Specification | A | B | C |
KF25RA16 | 40 | 30 | 40 |
KF40RA16 | 55 | 30 | 40 |
KF40RA25 | 55 | 40 | 40 |
KF50RA16 | 75 | 30 | 40 |
KF50RA25 | 75 | 40 | 40 |
KF50RA40 | 75 | 55 | 40 |
