CF Reducing Flange
Material: SS304, SS316

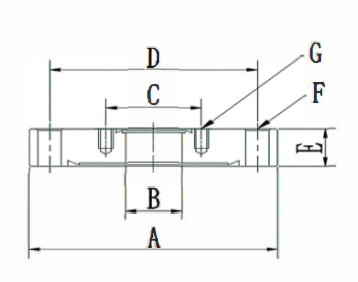

| Specification | A | B | C | D | E | F*No | G*No |
| CF25RF16 | 54 | 16 | 27 | 43 | 10.5 | 6.6*6 | M4*6 |
| CF35RF16 | 70 | 16 | 27 | 58.7 | 13 | 6.6*6 | M6*6 |
| CF35RF25 | 70 | 25 | 43 | 58.7 | 13 | 6.6*6 | M6*6 |
| CF50RF16 | 86 | 16 | 27 | 86 | 16 | 8.4*8 | M6*6 |
| CF50RF35 | 86 | 25 | 43 | 86 | 16 | 8.4*8 | M6*6 |
| CF50RF35 | 86 | 35 | 58.7 | 86 | 16 | 8.4*8 | M6*6 |
| CF63RF35 | 114 | 35 | 58.7 | 92.2 | 17.5 | 8.4*8 | M6*6 |
| CF100RF35 | 152 | 35 | 58.7 | 130.3 | 20 | 8.4*16 | M6*6 |
| CF100RF63 | 152 | 63 | 92.2 | 130.3 | 20 | 8.4*16 | M8*8 |
| CF160RF35 | 202 | 35 | 58.7 | 181 | 22 | 8.4*20 | M6*6 |
| CF160RF63 | 202 | 63 | 92.2 | 181 | 22 | 8.4*20 | M8*8 |
| CF160RF100 | 202 | 100 | 130 | 181 | 22 | 8.4*20 | M8*16 |
| CF200RF35 | 253 | 35 | 58.7 | 231.8 | 24.5 | 8.4*24 | M6*6 |
| CF200RF63 | 253 | 63 | 92.2 | 231.8 | 24.5 | 8.4*24 | M8*8 |
| CF200RF100 | 253 | 100 | 130 | 231.8 | 24.5 | 8.4*24 | M8*16 |
| CF200RF160 | 253 | 160 | 181 | 231.8 | 24.5 | 8.4*24 | M8*20 |
| CF250RF35 | 305 | 35 | 58.7 | 284 | 26 | 8.4*32 | M6*6 |
| CF250RF63 | 305 | 63 | 92.2 | 284 | 26 | 8.4*32 | M8*8 |
| CF250RF100 | 305 | 100 | 130.3 | 284 | 26 | 8.4*32 | M8*16 |
| CF250RF160 | 305 | 160 | 181 | 284 | 26 | 8.4*32 | M8*20 |
| CF250RF200 | 305 | 200 | 231.8 | 284 | 26 | 8.4*32 | M8*24 |
