Author： Foshan Bowah Vacuum Equipment Co.,Ltd

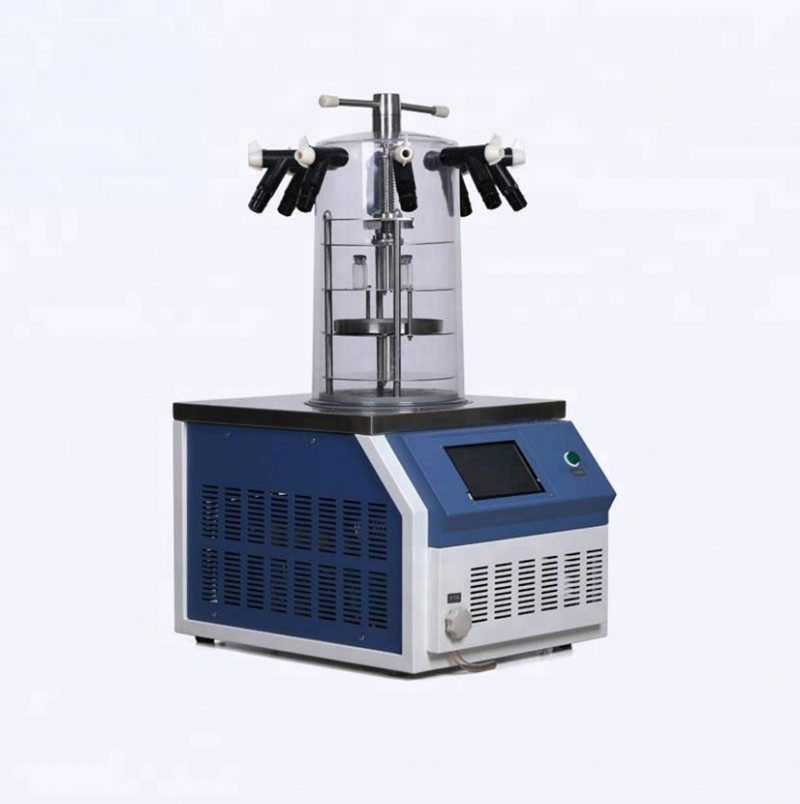

A lyophilizer, also known as a freeze dryer, is a piece of laboratory equipment used to preserve perishable materials by removing water or other volatile components through a process known as lyophilization or freeze-drying. The process involves freezing the material, then reducing the pressure around it to allow the frozen moisture to sublimate (pass directly from a solid state to a gas) without melting. This results in a material that can be stored for an extended period of time without refrigeration while maintaining its original structure and properties.
Lyophilizers are commonly used in a variety of applications, including food preservation, pharmaceuticals, and biotechnology. They are also used in space missions, where freeze-drying is a preferred method for preserving food and medical supplies.
A lyophilizer (freeze dryer) vacuum pump is a critical component in the operation of a freeze dryer or lyophilizer. It is responsible for creating the vacuum necessary to carry out the lyophilization process. The vacuum pump pulls air out of the lyophilizer chamber, which reduces the pressure and allows the frozen moisture to sublimate.
There are several types of vacuum pumps that can be used with a lyophilizer, including rotary vane pumps, scroll vacuum pumps, and turbo-molecular pumps. The type of pump selected will depend on factors such as the desired vacuum level, flow rate, and process requirements. It is important to choose the right vacuum pump for a specific lyophilizer to ensure efficient and effective operation.
The vacuum level created by the pump must be sufficient to effectively remove moisture from the frozen product. The vacuum level can range from rough vacuum, typically around 25 mbar, to high vacuum, which can be below 0.1 mbar. The pressure level needed will depend on the product being dried, its initial moisture content, and the desired final moisture content.
When choosing a vacuum pump for a lyophilizer, it is important to consider the desired flow rate and process requirements. For example, some lyophilization processes require continuous pumping, while others only require intermittent pumping. The flow rate required will depend on the size of the lyophilizer and the volume of the product being dried.
It is also important to consider the maintenance requirements and reliability of the vacuum pump. Some vacuum pumps may require frequent maintenance, while others are designed for low maintenance and long-term reliability.
In a lyophilization process, the product is first frozen and then placed in a vacuum chamber. The vacuum pump, including an oil rotary vane pump, is used to remove the air and moisture from the chamber, creating a low-pressure environment. This environment causes the moisture in the frozen sample to sublimate, or transition directly from a solid to a gaseous state, bypassing the liquid phase. The moisture is then pumped out of the chamber and collected. This process results in a product that is dry, stable, and shelf-stable, with a longer shelf life than the original, unfrozen product.

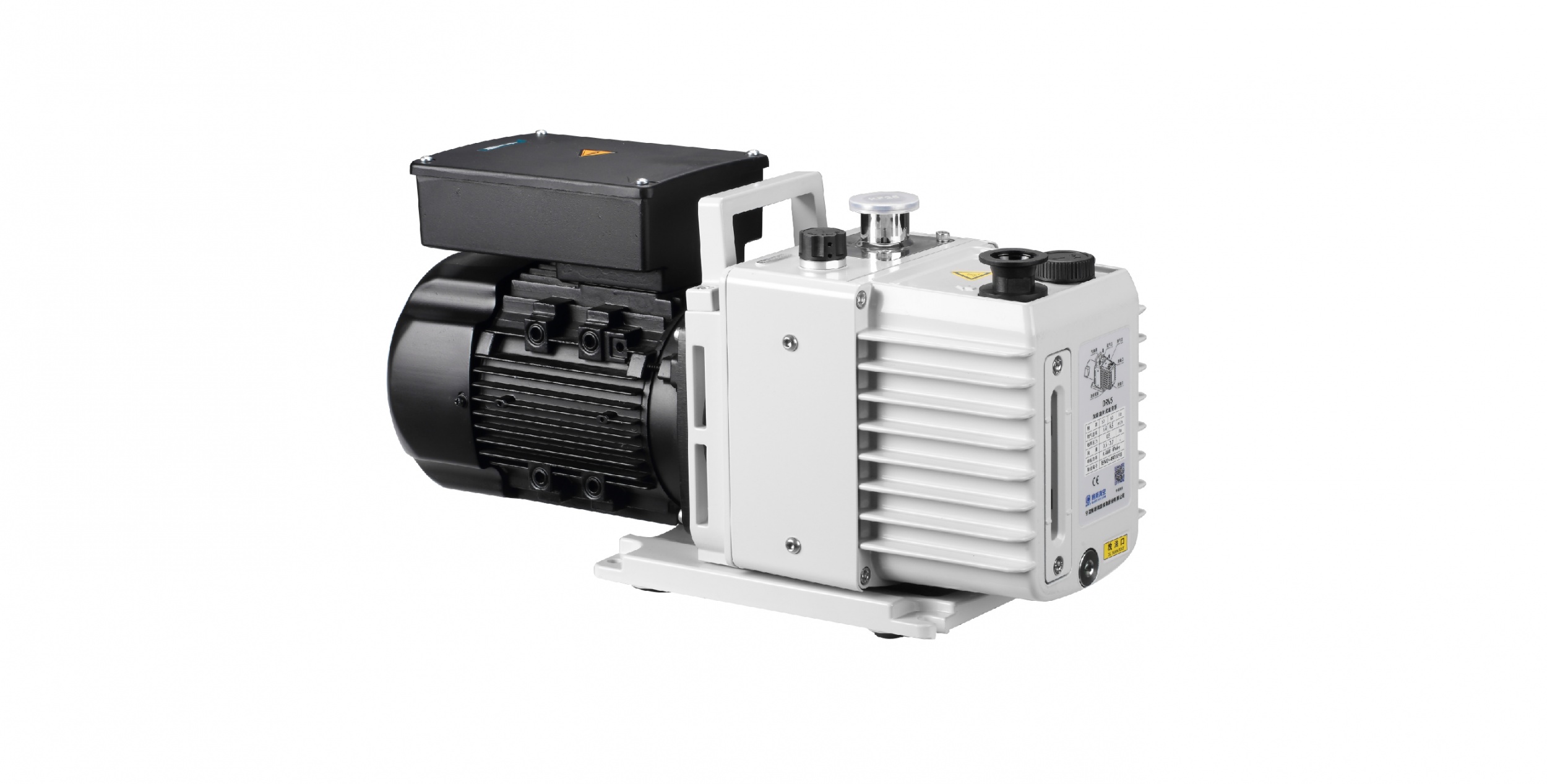

Oil rotary vane pumps are commonly used in lyophilization processes due to their high pumping speed, reliability, and ease of maintenance. They are also capable of creating high vacuum levels, making them suitable for use in various applications requiring high-quality vacuum performance. However, it is important to note that proper maintenance is required to keep the pump running smoothly and to prevent contamination of the product during the lyophilization process.
An oil-free vacuum pump is used for lyophilization (freeze-drying) processes to create a high-vacuum environment for the removal of water from the frozen material. The oil-free design eliminates the need for lubricating oil, making it ideal for use in applications where contamination is a concern. The vacuum pump operates by compressing and evacuating air, creating a low-pressure environment that enables the sublimation of ice into water vapor. The oil-free design is maintenance-free and operates more quietly than oil-based vacuum pumps, making it a cost-effective and efficient solution for lyophilization applications.
Oil and oil-free vacuum pumps are two different types of vacuum pumps used in freeze dryers (also known as lyophilizers).
Oil-based rotary vane vacuum pumps use oil as a lubricant and seal. They provide reliable performance, and high pumping speed, and can handle larger volumes of air. However, they require regular maintenance and oil changes to keep them running smoothly. The oil can also contaminate the lyophilized product, making the oil-based pumps unsuitable for use in food, pharmaceutical, and other similar industries.

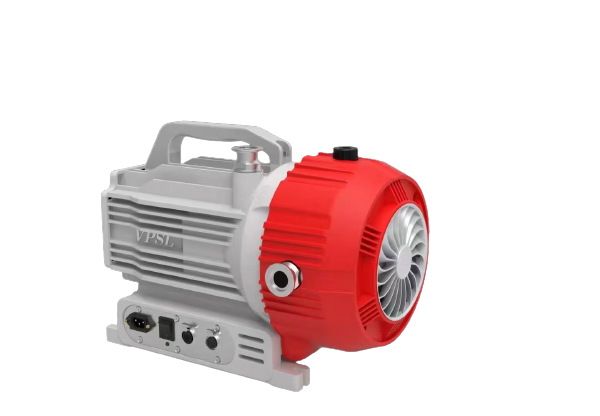

Oil-free scroll vacuum pumps, on the other hand, do not use oil in their operation. They are cleaner and more environmentally friendly but are typically more expensive than oil-based pumps. They also have a lower pumping speed and may require more maintenance, but are ideal for applications where product purity is critical and oil contamination is not acceptable.
Oil-free vacuum pumps are becoming increasingly popular in freeze drying due to their clean, low-maintenance operation and ability to handle moisture-sensitive applications. Unlike oil-sealed vacuum pumps, oil-free pumps do not require regular oil changes and do not introduce oil into the process, making them ideal for food, pharmaceutical, and laboratory applications. Oil-free pumps also offer longer service life, lower operating costs, and less downtime compared to oil-sealed pumps. However, they tend to be more expensive upfront and may not be able to achieve the same deep vacuum levels as oil-sealed pumps. Ultimately, the choice between oil and oil-free vacuum pumps for freeze drying will depend on the specific requirements of each application and budget.
