Pressure Range (Pa): 10E5~1.3E-7
Leak Rate (Pa˙L/s): ≤1.3E-7(DN≤200); ≤6.7E-7(DN≥250)
Orientation: Any

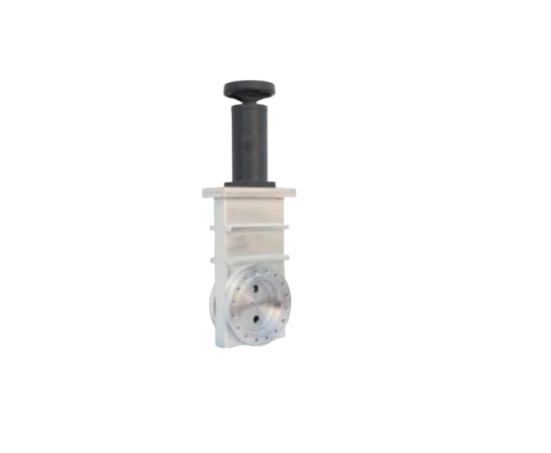

The pneumatic high vacuum gate valve is powered by compressed air, changes the direction of the air path through the electromagnetic reversing valve, pushes the cylinder piston, pushes (pulls) the link assembly through the transmission rod, and drives the valve plate to move in the axial direction to realize the valve plate. Open or close, so as to achieve the purpose of connecting or cutting off the airflow in the vacuum system.
The structure is reasonable in design, beautiful in appearance, stable in action, small in size, large in the flow channel, reliable in use, good in sealing performance, and long in life, and can be widely used in vacuum equipment.
The applicable working medium is clean air and non-corrosive gas.
