Material: SS304 or SS316

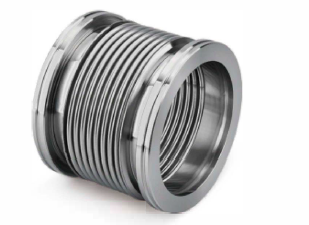

ISO vacuum bellows are suitable for various pipeline connections in high vacuum and low vacuum environments. The bellows can take advantage of telescoping properties to absorb the displacement of certain pipe fittings. The vacuum bellows used to connect the vacuum pump can also reduce the vibration impact on the equipment during the operation of the vacuum pump. Flanges for ISO vacuum bellows can be roughly divided into two types: ISO-K and ISO-F. This connection is safe, efficient, and fast. The vacuum bellows make the connection between the vacuum pipeline and the vacuum equipment easier and more efficient.

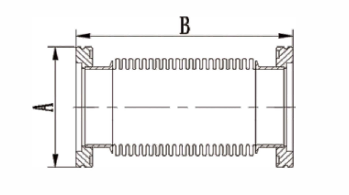

Specification | A | B |
ISO63FXC | 95 | Customizable within 3 meters |
ISO80FXC | 110 | |
ISO100FXC | 130 | |
ISO160FXC | 180 | |
ISO200FXC | 240 | |
ISO250FXC | 290 |
