Material: SS304 or SS316

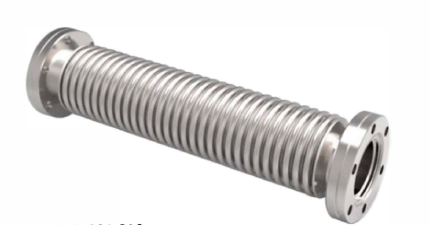

CF vacuum bellows are suitable for pipeline connections in various low vacuum and high vacuum environments. The flanges at both ends of the bellows are CF knife-edge flanges. The connection method is to add oxygen-free copper gaskets of suitable specifications between the two CF knife-edge flanges to be connected, which is conducive to connecting and sealing bolts and nuts of corresponding specifications to lock the two flanges. CF vacuum bellows are sealed with oxygen-free copper gaskets, which can withstand high temperatures and ultra-high vacuum environments.

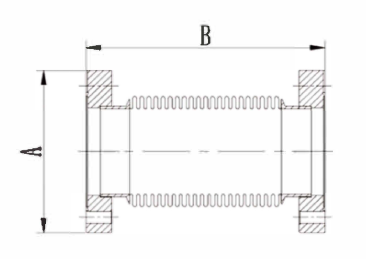

Specification | A | B |
CF16FX | 34 | Customizable within 10 meters |
CF25FX | 54 | |
CF35FX | 70 | |
CF50FX | 86 | |
CF63FX | 114 | |
CF80FX | 130 | |
CF100FX | 152 | |
CF160FX | 202 | |
CF200FX | 253 | |
CF250FX | 305 |
