Material: SS304, SS316
DN: 16, 35, 63, 100, 150, 200

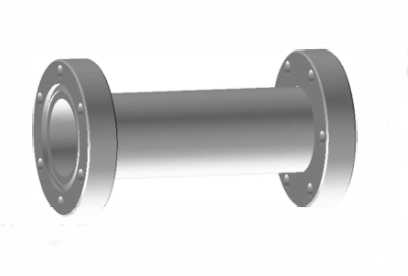

To satisfy your demanding standards for quality and performance, our line of CF vacuum nipple fittings is constructed from 304 or 316 stainless steel. They have a two-way joint that fits equally well on both sides. They are constructed from durable materials and have a very high vacuum degree. You can create any configuration you want using the variety of fittings that are available.

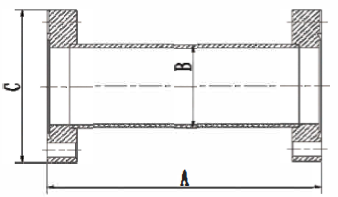

Spec | A | B | C |
CF16N | 76 | 19.05 | 34 |
CF35N | 126 | 38.1 | 70 |
CF63N | 210 | 63.5 | 114 |
CF100N | 270 | 101.6 | 152 |
CF150N | 334 | 152.4 | 202 |
CF200N | 334 | 204 | 253 |
