ISO Centering Ring with Oring

Name: ISO Centering Ring with Oring
Rating: 4.9 (83 reviews)

Size: DN63 - DN500

Product Detail

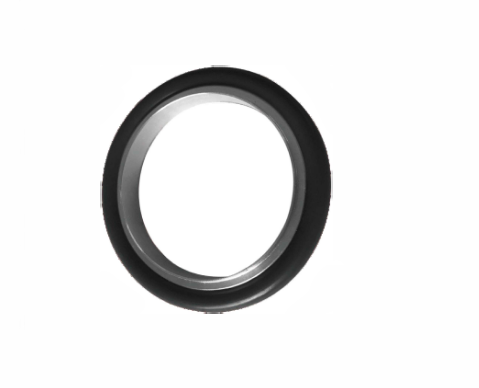

The ISO centering ring with O-ring typically consists of two parts: the centering ring, and the O-ring. The centering ring is a circular metal piece with tabs that fit into the grooves on the ISO flanges. The O-ring is a rubber or elastomer gasket that is compressed between the two surfaces to create a seal.

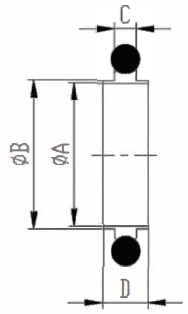

Specification	Standard	CR	Oring	A	B	C	D
ISO63CRVAE	EN	Aluminum	Viton	67	70	3.9	8
ISO80CRVAE				80	83	3.9	8
ISO100CRVAE				99	102	3.9	8
ISO160CRVAE				150	153	3.9	8
ISO200CRVAE				210	213	3.9	8
ISO250CRVAE				257.5	261	3.9	8
ISO320CRVAE				312	318	5.6	12
ISO400CRVAE				394	400	5.6	12
ISO500CRVAE				494	501	5.6	12
ISO63CRVSE		SS304	Viton	67	70	3.9	8
ISO80CRVSE				80	83	3.9	8
ISO100CRVSE				99	102	3.9	8
ISO160CRVSE				150	153	3.9	8
ISO200CRVSE				210	213	3.9	8
ISO250CRVSE				257.5	261	3.9	8
ISO320CRVSE				312	318	5.6	12
ISO400CRVSE				394	400	5.6	12
ISO500CRVSE				494	501	5.6	12
ISO63CRVAA	AISI	Aluminum	NBR	67	69.6	3.9	8
ISO80CRVAA				80	82.6	3.9	8
ISO100CRVAA				99	101.6	3.9	8
ISO160CRVAA				150	152.6	3.9	8
ISO200CRVAA				210	212.6	3.9	8
ISO250CRVAA				257.5	260.6	3.9	8
ISO320CRVAA				312	317.3	5.6	12
ISO400CRVAA				394	399.2	5.6	12
ISO500CRVAA				494	500.2	5.6	12
ISO63CRVSA		SS304	NBR	67	69.6	3.9	8
ISO80CRVSA				80	82.6	3.9	8
ISO100CRVSA				99	101.6	3.9	8
ISO160CRVSA				150	152.6	3.9	8
ISO200CRVSA				210	212.6	3.9	8
ISO250CRVSA				257.5	260.6	3.9	8
ISO320CRVSA				312	317.3	5.6	12
ISO400CRVSA				394	399.2	5.6	12
ISO500CRVSA				494	500.2	5.6	12
